Overview

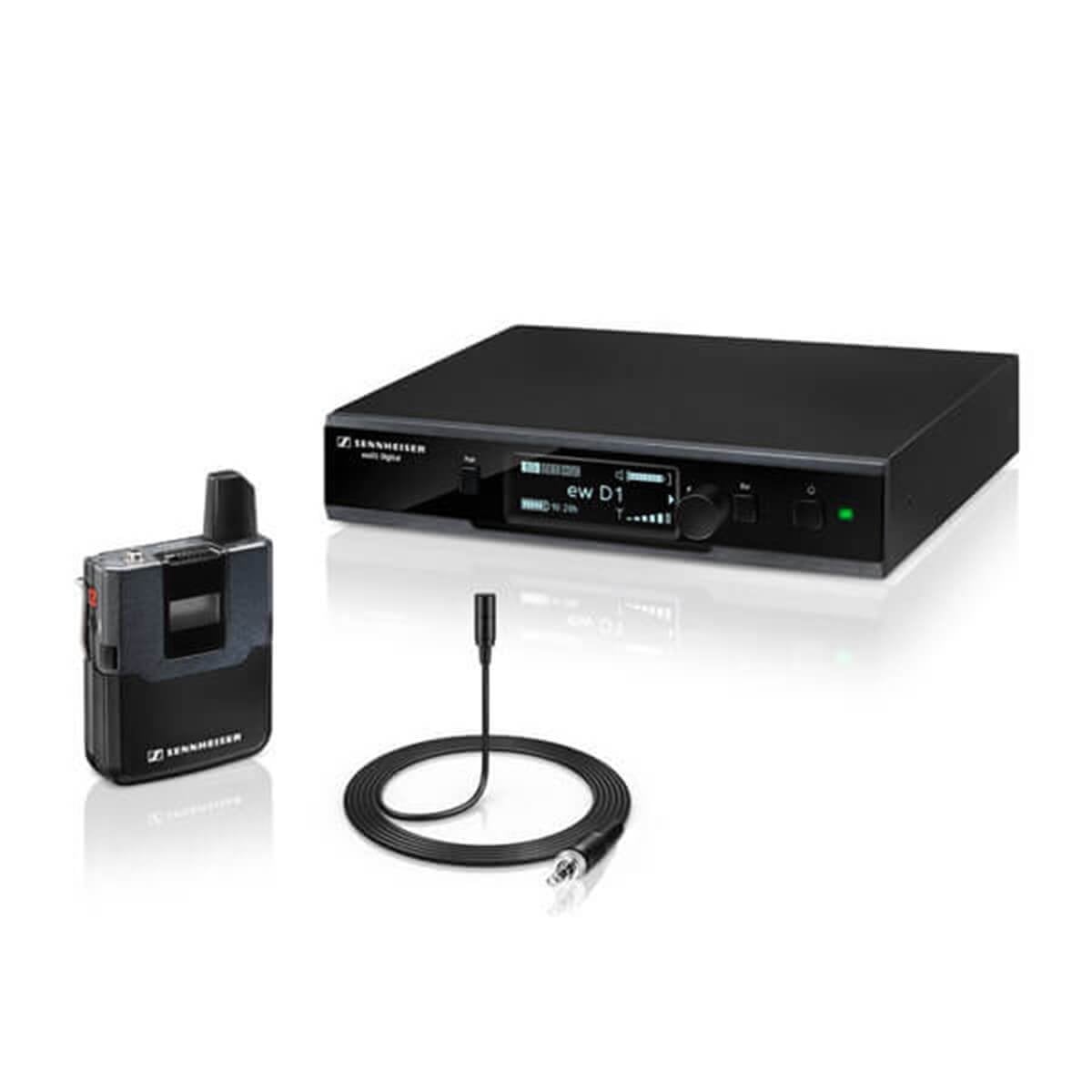

evolution wireless D1 Lavalier-Set with ME 2 lavalier microphone for live stage use.
evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.
Features
-
Unobtrusive professional clip-on microphone
-
Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
-
Automatic frequency management
-
Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
-
Audio effects: equalizer, de-esser, automatic gain control
-
iOS app for remote control and monitoring of the system
-
Sturdy metal housing
Technical Data
SK D1
| Microphone | 50 to 20,000 Hz | |
|---|---|---|
| 2.2 V RMS | ||
| Weight | approx. 85 g | |
| RF output power | adaptive, up to 100 mW (country-specific) | |
| Battery Specification | 2 x AA size battery (1,5V) | |
| Input impedance | 1 MΩ | |
| Connection | 3.5 mm jack socket, lockable | |
| Line | 20 to 20,000 Hz | |
| 3.3 V RMS | ||
| Input sensitivity | automatic sensitivity adjustment | |
| Accupack | BA 30 (Li-Ion, 3.7V) | |
ME 2
| Microphone | pre-polarized condenser | |
|---|---|---|
| Max. sound pressure level | 130 dB SPL | |
| Pick-up pattern | omni-directional | |
| Sensitivity | 20 mV/Pa | |
System
| THD, total harmonic distortion | typ. < 0,1 % | |
|---|---|---|
| Storage temperature | – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics) | |
| Operating temperature | ||
