SKAARHOJ PTZ PRO
Skaarhoj PTZ Pro

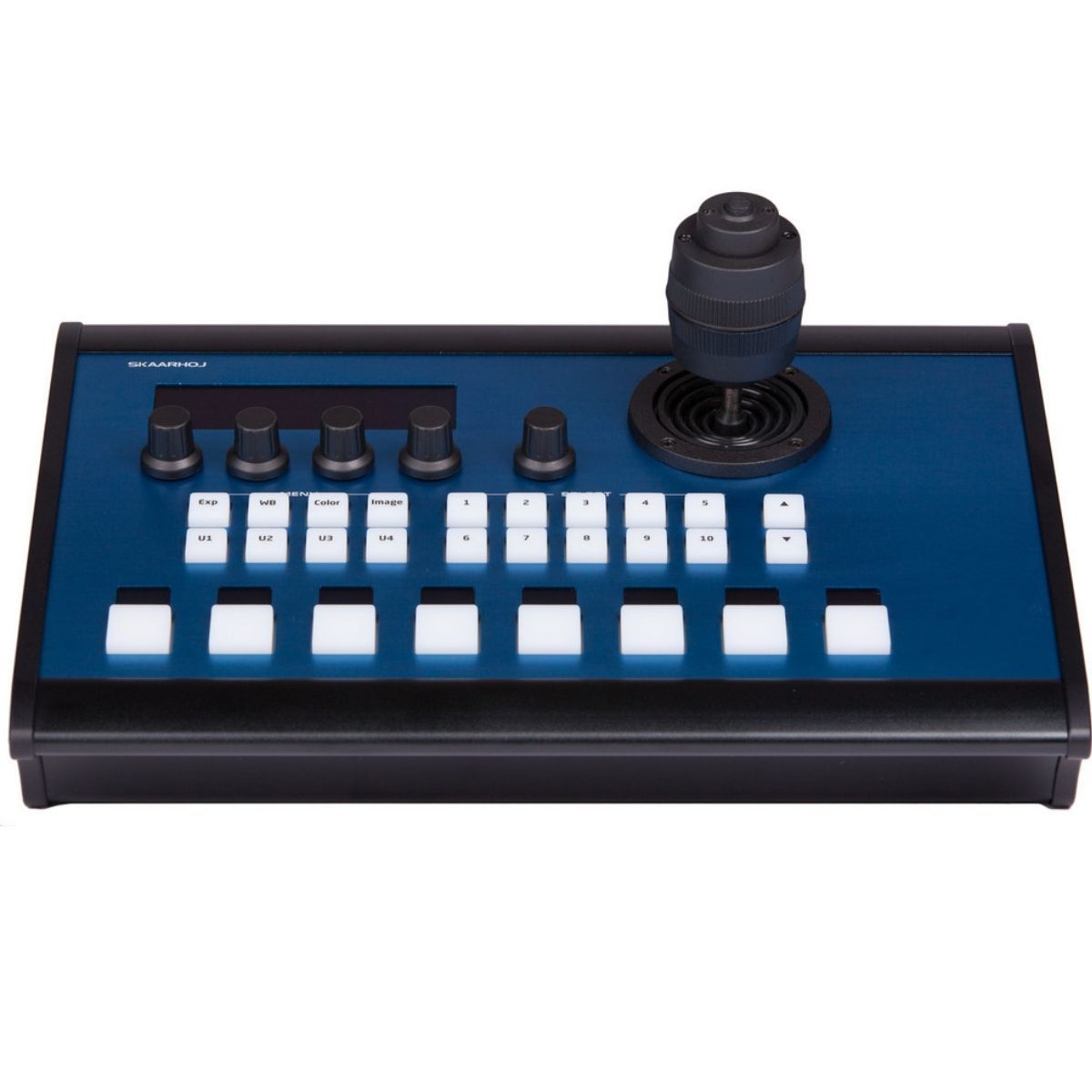

Perform precise pan/tilt/zoom control movements and have configuration and selection of PTZ cameras at your fingertips with the PTZ Pro V2 Camera Controller from SKAARHOJ. Featuring a precision 3-axis joystick and dedicated focus knob, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus and zoom. The control panel features four backlit encoder knobs, ten camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation. The updated V2 model adds compatibility with more camera models.
The PTZ Pro V2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user programmable to fit specific workflows. PoE (Power-over-Ethernet) technology simplifies setup by enabling data and power to travel via a single cable. The controller is compatible with VISCA devices and other IP-controlled cameras from brands such as AIDA, Blackmagic, Lumens, NewTek, Vaddio, BirdDog, Panasonic, PTZ Optics, and Sony.
A power adapter, a USB programming cable, and an Ethernet cable are included in the box. There are available options to upgrade the joystick to the Hall Effect ergonomic joystick, as well as an option for an SDI upgrade component for use with Blackmagic Arduino Shields and fiber converters.
Key Features
Compatibility
- AIDA Imaging PTZ3-X2OL, PTZ-X12-IP
- Lumens VC-A50P, VC-A61P
- NewTek NDI-HX-PTZ1, PTZUHD
- Panasonic PTZ
- Panasonic AW-HEx
- PTZOptics PT20X, PTx
- Sony BRC-Z700, BRC-H900, BRC-X400, BRC-X1000, BRC-H800, and SRG-300
- Blackmagic Design camera control via SDI, ATEM
- Vaddio RoboSHOT
- BirdDog P100, P200
- Bolin VCC-7HD30S-3SMN
- Ross PIVOTCam
- Angekis Saber Plus U3D-12FHD6
- Minrray UV510A-S12/S20
- Avonic CM-71-IP
- JVC KY-PZ100
- Datavideo PTC-140, PTC-150
- Skaarhoj Raw Panel
